• The Calian TW3972XF is a high-precision, triple-band antenna for global navigation satellite systems (GNSS). It's built for harsh environments, meeting standards like AAR and EN45545-2, and is equipped with advanced filtering to ensure optimal performance in congested radio frequency environments.
  • A multi-constellation, triple-band antenna with extended filtering technology (XF) for GNSS applications. The TW3972XF is designed to provide precision positioning by receiving signals from multiple satellite systems while mitigating interference from other radio signals like Ligado and LTE.
  • A weatherproof, through-hole mount antenna, the Calian TW3972XF is a precision-tuned triple-band antenna designed to provide accurate positioning by receiving signals from multiple satellite systems including GPS, GLONASS, and Galileo, while also mitigating interference from other radio signals.
1 3

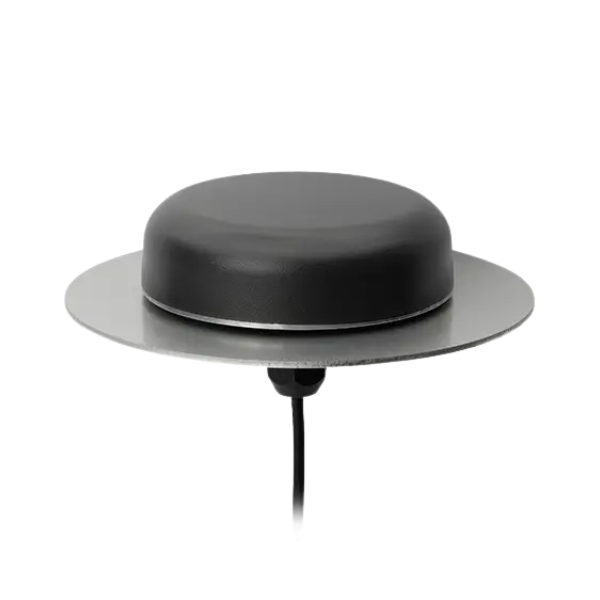

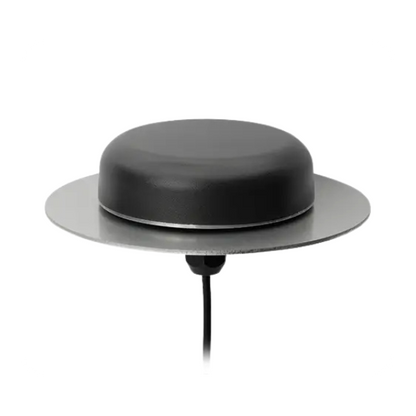

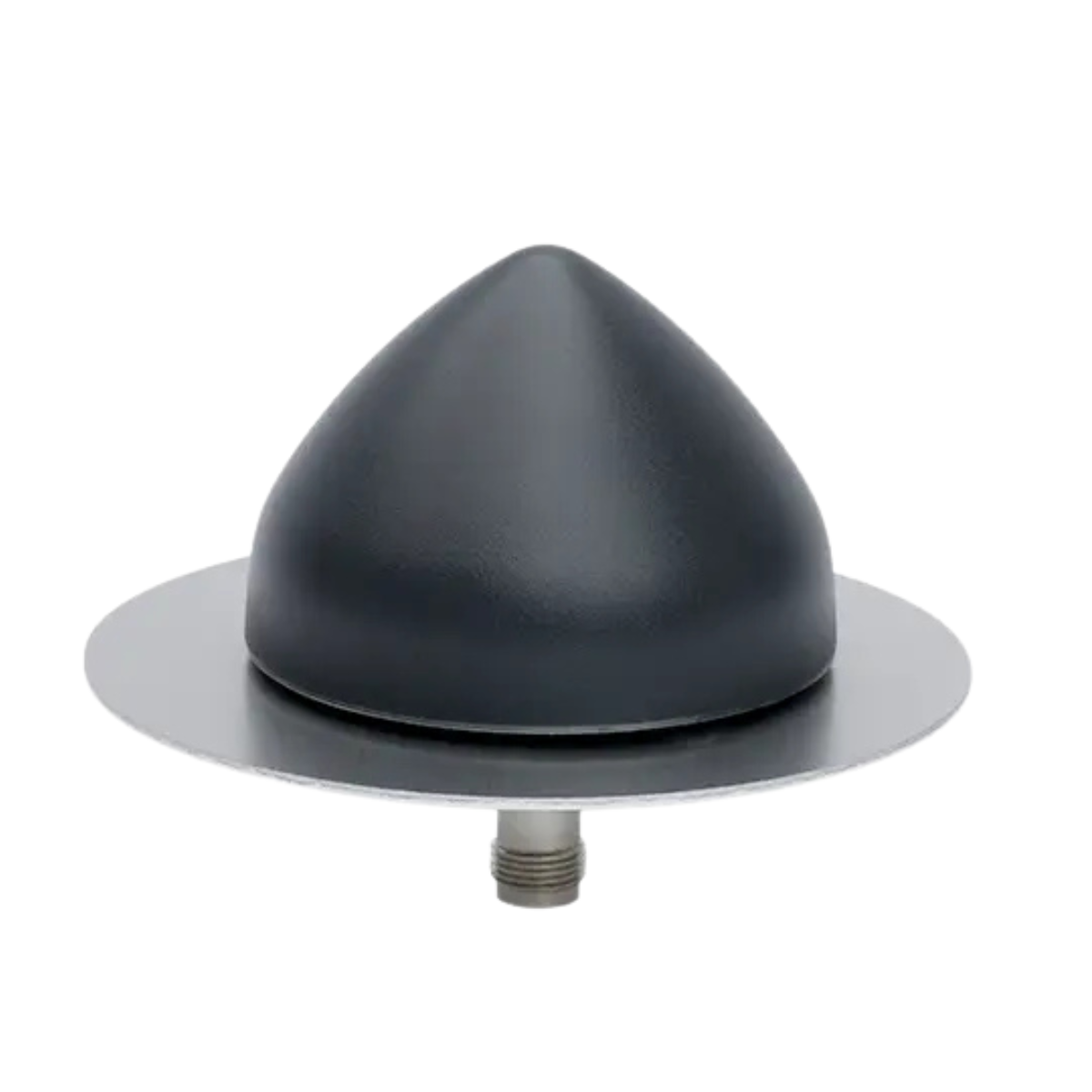

TW3972XF Extended-Filter Triple-Band GNSS Antenna +L-Band

TW3972XF Extended-Filter Triple-Band GNSS Antenna +L-Band

$379.75 USD
$379.75 USD
Attendee Promotion Sold out
Color: Black

The TW3972XF is a precision-tuned triple-band Accutenna® technology antenna providing coverage for triple-band GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2b/B2a, NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], plus L-band Corrections. It is especially designed for precision triple-frequency positioning.

The TW3972XF features a precision-tuned, twin circular dual-feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wideband LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The antenna also has a strong pre-filter to mitigate inter-modulated signal interference from Ligado, LTE and other cellular bands. The TW3972XF offers an excellent axial ratio and a tightly grouped phase centre variation.

Ideal for train control sensors, autonomous vehicle tracking and guidance, precision agriculture, and other applications where precision matters, The TW3972XF provides superior multipath signal rejection, a linear phase response, and tight phase centre variation (PCV).

The TW3972XF meets all requirements of the Association of American Railroads’ (AAR) Electronics Environmental Requirements and System Management Standard (S-9401.V1.0). In addition, it is also compliant with the EN45545-2, EN50121, EN50155, and EN61373 standards.

The TW3972XF is housed in a through-hole mount, weatherproof enclosure for permanent installations. L-bracket (PN 23-0040-0) or pipe mount (PN 23-0065-0) are available. A 100mm ground plane is provided with the antenna, which ensures optimal antenna performance.

**This antenna is also available in an OEM format: TW3967XF (28 dB) and TW3972EXF (37 dB).

Product Number: 33-TW3972XF-01 (TNC straight female)

Product Datasheet: https://sites.calian.com/app/uploads/sites/8/2024/06/Calian%C2%AE-TW3972XF-Datasheet.pdf

Calian Ordering Guide: https://www.calian.com/advanced-technologies/calian-ordering-guide-en-2025-02-26/
