TP5790-SWNAV SDK - High Precision Smart GNSS Antenna with Inertial Measurement Unit and RTK

Calian’s High Precision Tallysman Smart GNSS antennas integrate advanced receivers with High Precision Tallysman GNSS antennas, connecting Position, Navigation and Timing resources to host systems over digital interfaces.

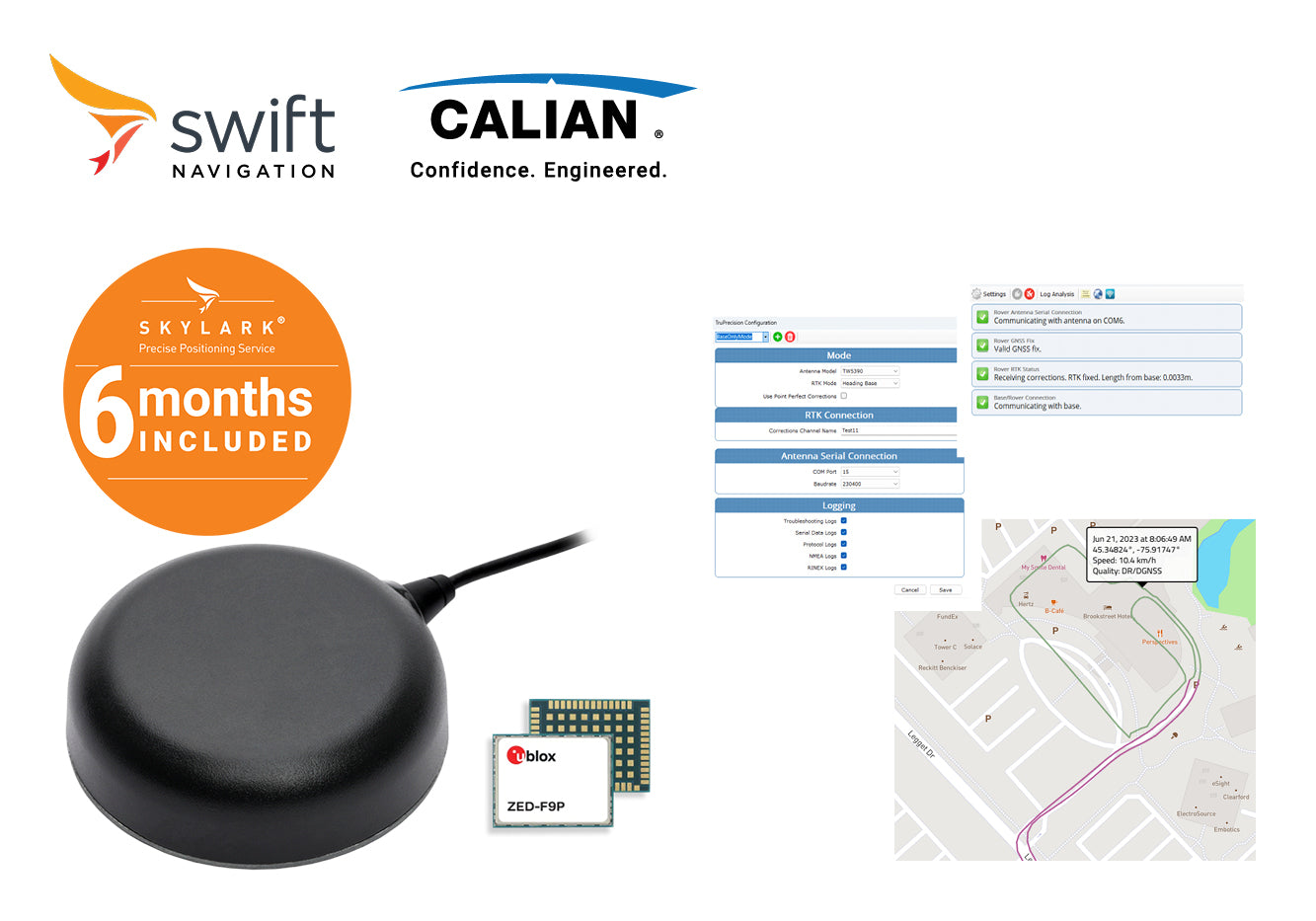

TP5790-SWNAV Precision GNSS Antenna with IMU SDK includes:

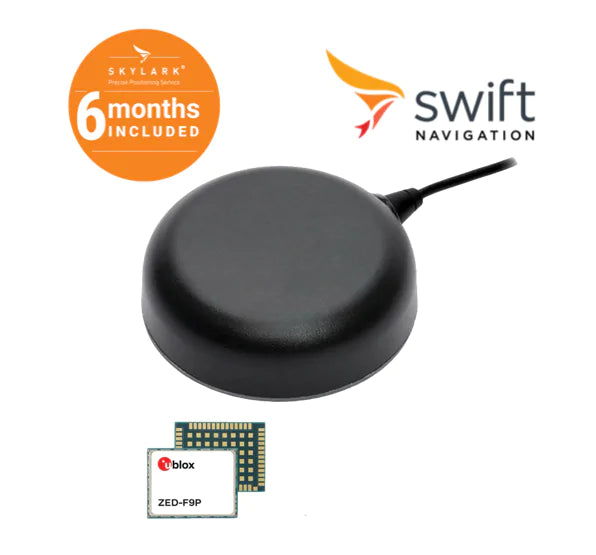

• 1 x Calian TW5790 Smart GNSS High Precision (IMU) antenna (see below ordering information)
• 1 x 23-0067-14: ten cm ground plane
• Calian TruPrecision Application for Software Development and Verification
• 6 month trial subscription to the Swift Navigation Skylark Cx Precise Positioning Service

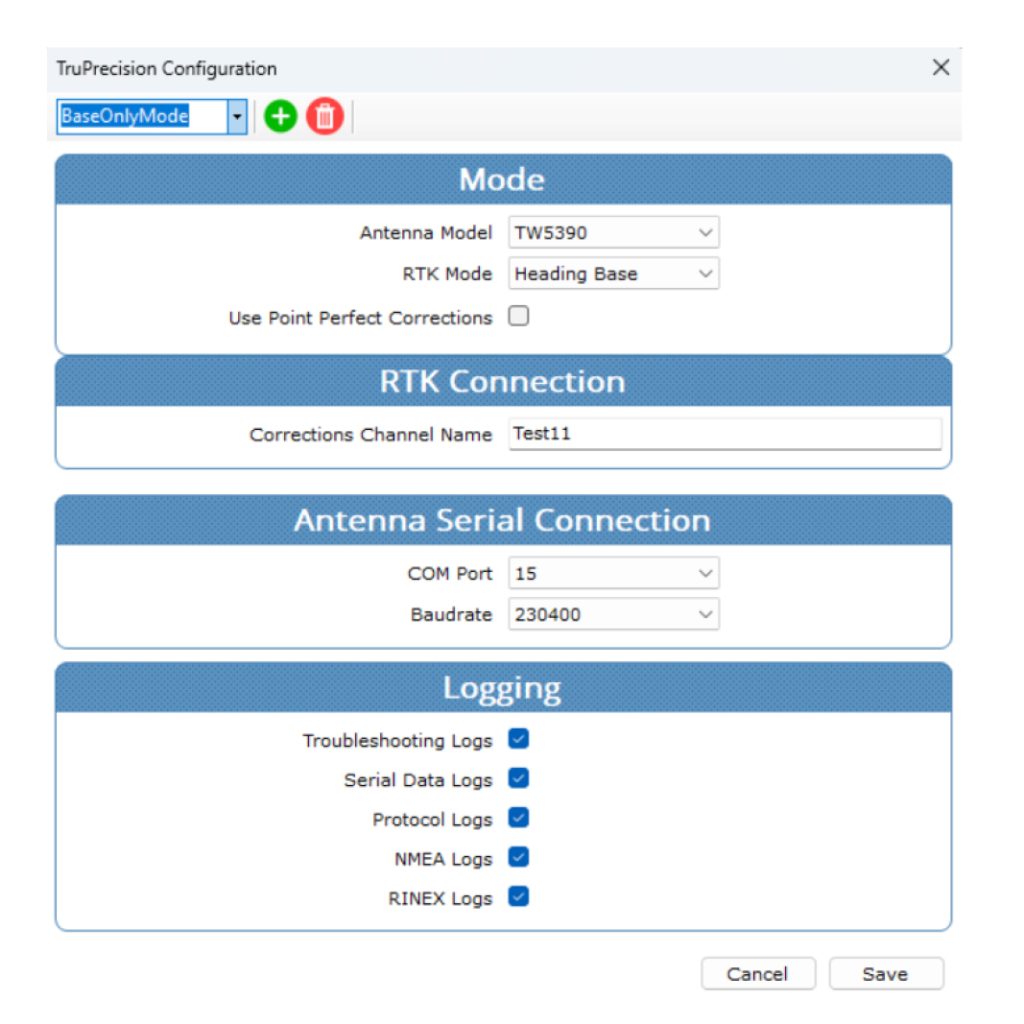

The TruPrecison SDK application is a Windows application which provides an autonomous connection to stream PointPerfect IP or N-RTK corrections and decryption keys to the TW5790 Smart Antenna via a USB connection, which also provides a Virtual COM Port to allow customers to connect their existing applications to the Calian Smart GNSS Antenna high precision position data output. The position data may be either NMEA or UBX formatted messages..
