TP5387-SWNAV High-Precision Smart L1/L5 GNSS SDK

TP5387-SWNAV High-Precision Smart L1/L5 GNSS SDK

$569.46 USD
$569.46 USD
Attendee Promotion Sold out
Connector Options

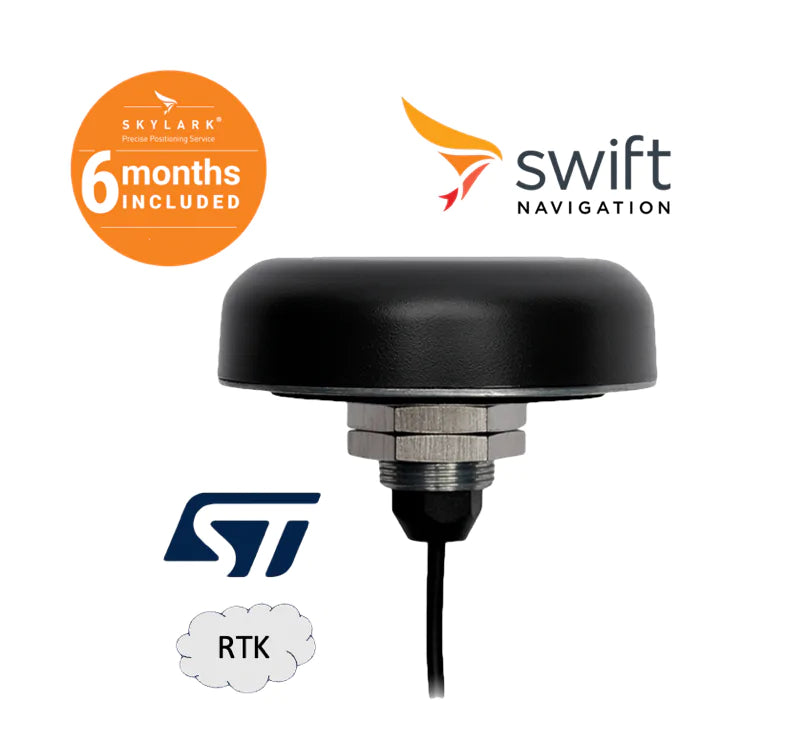

Calian’s TW5387 High Precision Tallysman Smart L1/L5 GNSS Antenna with Swift Navigation Skylark Precise Positioning Service is the Plug and Play solution for  L1/L5 and cPNT applications.

Coverage

L1, L5, E1, E5a, B1, B2a

Mount

Through-Hole

Connector Options

RJ45


TP5387-SWNAV Precision GNSS Antenna with IMU SDK includes:

  • 1 x Calian TW5387 Smart GNSS High Precision (IMU) antenna (see below ordering information)
  • 1 x 23-0067-0: 10 cm ground plane
  • Calian TruPrecision Application for Software Development and Verification
  • 6 month trial subscription to the Swift Navigation Skylark Cx Precise Positioning Service

The TruPrecison SDK application is a Windows service which provides an autonomous connection to stream Skylark corrections to the TW5387 Smart Antenna via a USB to Serial Bridge which also provides a Virtual COM Port to allow customers to connect their existing applications to the Calian Smart GNSS  Antenna  high precision “corrected” position data output as NMEA formatted messages.


https://github.com/Calian-gnss/calian-gnss-ROS2-drivers
